Telha de fibrocimento

Comprimento

1,22m; 1,53m; 1,83m; 2,13m e 2,44m

Largura

1,10m

Largura útil

1,05m

Espessura

5mm

Vão máximo

Telha de 1,22m, 1,53m e 1,83m = 1,69m com 2 apoios
Telha de 2,13m e 2,44m = 1,69m com 3 apoios

Inclinação mínima

18% (10°)

Peças complementares

Cumeeira normal, cumeeira universal, cumeeira articulada, espigão universal, espigão de início e rufo

Garantia

5 anos

Calcium Silicate Drywall Board for Ceiling 4mm,4.5mm,5mm and 6mm

CalciumSilicate Board is 100% Non-asbestos, which is made by cellulose, quartz sand, cement, mica and others material.

Surface: Un-sanded/ Sanded

a. Characteristics:

1.Light weight with medium dennsity;

2.Good fireproofing
3.Thermal insulation;

4.Fire - resistant ( limit reaches 1h or more, if it is on fire, produces no smoke )

5.Moisture-proof;

6.Shockproof;

7.Undamaged by insects and rodents;

8.Easily constructed;
9.High bending strength

10.Long  lifespan ( can reach 50 years or more)

11.Good sound absorption (insulates against sounds of up to and over 40dB.)

b. Application:

4-6MM Thickness is used for the ceiling of the building.

8, 9, 10, 12, 15mm Thickness is used for partition.

15-18mm Thickness can be used for internal floor backer with some designed steel structure under special application requirement.

Ceilings and wall panels of the buildings, such as office buildings, residential buildings, commercial buildings, schools, airports, railway stations, research institutions, cinemas, hospitals, gyms and KTV rooms, etc.

Package:
1.Held by wooden Pallet or without Pallet

2.Bonded with plastic belt

3.Fasten around the corners

More information, please visit at www.hocre-board.com or send email to info@hocre-board.com

15mm High Density Fiber Cement Board for Flooring Sheet

15mm high density fiber cement board for flooring sheet

Hocreboard owns the advanced equipment for producing high density fiber cement board. The compressed machine's pressure is 14000tons. Can produce thickness maximum 30mm.

High density fiber cement board 15mm/16mm/18mm can be used as the flooring board;

The equipment was introduced from Germany. There are two production lines now. The production capacity is 20million square meters per year.



Product Name	15mm high density fiber cement board for flooring sheet
Raw Materials	Cellulose Fiber, Quartz Sand, Portland Cement
Standard Size	1220X2440MM / 1200X2400MM
Maxium Width	1250MM
Maximum Length	4880MM
Thickness	4-30MM
Density	1.5-1.7G/CM 3
Wet Expansion	≤0.23%
Water Absorption	≤25%
Incombustibility	Incombustible Class A1
Water Penetration	Back side without water drop after 24 hours
Flexural Strength	Air dried condition: ≥18; Saturated Condition: ≥14
Radioactivity	Decorative materials Class A
Frost Resistance	No layers and no cracks after 25 cycles under freezing and thawing
Asbestos	100% free of asbestos
Certification	ISO, CE, SGS
Packaging	Standard wooden pallet
Trade Terms	FOB, CNF, CIF
Payment Terms	T/T, Irrevocable L/C at sight
Delivery Time	Within 15 days if stock not available
Main Characteristic	Environmental friendly materials
	Excellent Strength and toughness
	Waterproofing and fireproofing
	Antisepsis and moth-proofing
	Good acoustic insulation and weather resistance
	Good thermal and heat insulation
	Durability and long lifetime
Application	Exterior decoration panel
	Intergrative facade panel for exterior wall thermal insulation
	Interior wall decoration panel
	Flooring for loft interlayer, container house, light steel villa
	For subway, tunnel,baseboard, outdoor furniture
	Coating board
	Thinner liniing board for stone

More information, please visit at www.hocre-board.com or send email to info@hocre-board.com

No Sweating No Chloride Magnesium Sulfate Board, Waterproof Mgo Board

Why choose us?

1.  More than 20 years manufacturing experience
2.  We have our quality control team ,we will test our raw material every time after arrival and choose  sample freely to inspect goods before delivery and loading goods into container
3.  We can provide customer with short lead time
4.  We have our own factory and professional sales team with fluently oral english and writing
5.  We can provide customer with customized products

What is mgo board?

Magnesium Oxide Board(Commonly known as MgO Board)
It is made of Activity of high-purity magnesium oxide, without magnesium chloride (Using other materials instead of magnesium chloride), and water ternary system, Anti-Alkali fiber mesh, flexible excellent plant fibers, non-combustible lightweight perlite etc.

8mm thickness indoor mgo board data for your reference
1	Flexural strength	longitudinal 15Mpa        transverse 13Mpa
2	Deformation by water-absorption	0.60%
3	Holding nail force	40N/mm
4	Shock force resistance	6.2KJ/m2

What is feature of mgo board?
 It has a high temperature, flame retardant, sound-absorb, Anti-seismic, waterproof and moisture proof , anti-moth, light and anti-corrosion, non-toxic ,tasteless ,non-polluting, It can be directly on the paint, veneer directly ,pasting tile. Its surface has good coloring. High strength, resistance to bending, toughness, It can be sawed; nailed, glued, extremely convenient decoration.

What is advantage of mgo board?

1. Fireproof: non-combustible
2. Moisture proof
3. Light and anti-seismic
4. Superior strength
5. Environmental and healthy
6.  Insulation and saving energy
7. Economy and affordable
8. Soundproofing and peaceful
9. Versatility
10. Durable
11. Insect resistant and Mildew resistant

More information,please send email to info@hocre-board.com or visit at www.hocre-board.com

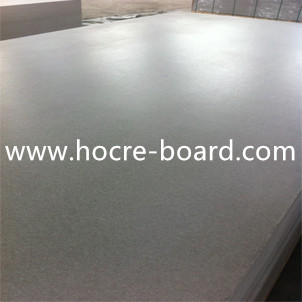

High Density Fiber Cement Board with Polished Surface, Grey Color for Outdoor Table Top& Floor

Light compressed board: average density is 1.4g/cm3, thickness from 4-14mm
Middle density board:average density is 1.3g/cm3,  thickness from 4-16mm
High density board:average density is above 1.6g/cm3,  thickness from 4-30mm
Other special size also can be made based on your demend.



Application
Floor System
Light weight sandwich panel can be innovatively used as floor board. Besides the basic characteristics like sound insulation, waterproof, dampproof, this system has the outstanding advantages such as hight load-bearing capacity, anti-static electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc., which is much suitable for the fields including the floor plate of additional top floor, factory, workshop, warehouse, etc.

Villa&Exterior Wall System
Light weight sandwich panel can automatically adjust indoor air and water content with the season and climate changes, which can keep the temperature at an invariable temperature level, and such ecology effect just goes with the tide of modern residential building. It is widely applied to various modular house, low buildings, apartment, villas, and city house, etc.

Interior Partition System
With excellent fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy
Installation and the like characteristics, light weight sandwich board have been widely
Applying to the special positions like partition panel of high-rise and mega-high-rise buildings.

Roof System
Light weight sandwich panel roof system brings brand-new added value and application idea to the traditional roof construction. This system not only solves the problem of roof leakage, but also has the advantages such as heat insulation, neat joint surface, high temperature resistance, etc. The features of light weight and hight strength reduce the use of roof beam-column, reduce the consumption of materials, improve security; Its easy construction time, which bring out its hight integrated performance-price ratio.

Please do not hesitate to contact us in order to bring you detailed information in case you are interested.


Polished Surface Fiber Cement Board Materials Used Building Partition Wall

Polished Surface Fiber Cement Board Materials Used Building Partition Wall
Specifications:
1) Dimensions: 1220mm*2440mm
2) Thickness: 4 -30mm
3) Other specifications available
4) Density: 1.1-1.5g/cm3
5) We supply the board with bevel edge in two edges or four edges and square edge
6) Physical properties
A) Bending strength: E 9MPa (in vertical), e7MPa (in paralle)
B) Moisture movement: D0.2%
C) Water content: 10%
D) Thermal conductivity: D0.29W/m. K
E) Continuous anti-freezing: -30oC
F) Anti-high temperature: +120oC
7) Combustibility: Up to the standard of GB 8624, In-combustibility Class A, also up to the standard of BS 476 part 4: 1970, part 6: 1979 and part 7: 1997
Product characteristics:
1) Non toxic
2) Fireproof
3) Soundproof
4) Sawable
5) Thermal insulation
6) Impact resistant
7) Planeable
8)Mothproof
9) Moisture proof

More information,please visit at www.hocre-board.com or send email to info@hocre-board.com

Fireproof waterproof reinforced fiber cement board,kitchen&bathroom partition

Standard Specifications of Reinforced Fiber Cement Board :

1) 2440 × 1220 × 3.5-30MM

2) 2400 × 1200 × 3.5-30MM

3) 3050× 1220 ×  4-25MM

4) 3660× 1220 × 5-25MM

The other specification is also avaliable

Main mechanical performance of Reinforced Fiber Cement Board :

density(g/cm)	1.3-1.4
antiflex cracking strength(Mpa≥)	14
Water adsorption rate(≤)	35
Water impermeability	For 24h,no water drop
Freeczing resistance	Through 25times,no damage
incombustibility	Class A

Main Characteristics of Reinforced Fiber Cement Board :

1)excellent fire-proof

2)excellent damp-proof

3)Durability and long service life

4)high strength

5)stable dimensions

6)good heat and sound insulation

7)non-asbestos

8)mould resistant

9)no deformation

Packing of Reinforced Fiber Cement Board :   with strong wooden pallets

Wooden Grain Fiber Cement Board Used for Furniture Table Top

Woodn Grain Fiber Cement Board can be used for furniture table top.

Specifications:
1) Dimensions: 1220mm*2440mm
2) Thickness: 4 -30mm
3) Other specifications available
4) Density: 1.5-1.7g/cm3
5) We supply the board with bevel edge in two edges or four edges and square edge
6) Physical properties
A) Bending strength: E 9MPa (in vertical), e7MPa (in paralle)
B) Moisture movement: D0.2%
C) Water content: 10%
D) Thermal conductivity: D0.29W/m. K
E) Continuous anti-freezing: -30oC
F) Anti-high temperature: +120oC
7) Combustibility: Up to the standard of GB 8624, In-combustibility Class A, also up to the standard of BS 476 part 4: 1970, part 6: 1979 and part 7: 1997
Product characteristics:
1) Non toxic
2) Fireproof
3) Soundproof
4) Sawable
5) Thermal insulation
6) Impact resistant
7) Planeable
8)Mothproof
9) Moisture proof

More information, please send email to info@hocre-board.com

High Density Cement Board With natural POLISHED and PATINA LOOK for outdoor furniture table Viet Nam Market

Specifications

We are the leader producer of non-asbestos fiber cement flat board in China.

We'd like to give a brief introduction about our products.
We offer the most innovative Fiber Cement technology and to build complete production lines and/or related consulting services with this kind of industry. Our technology can produce flat boards from 3.5 to 30 mm thickness, density from 1.1 to 1.7g/cm3 for uses like interior and exterior walls, ceiling, decks, container house, prefabricated house etc.

Non-asbestos, fire and water proofing and anti-month.
Product Name	High Density Fiber Cement Board
Raw Materials	Cellulose Fiber ,Quartz Sand, Portland Cement
Standard Sizes	1220*2440MM/1200*2400MM
Maximum Width	1220
Maximum Length	3600
Thickness	3.5-30MM
Density	1.4-1.7G/CM3(average density is over 1.6G/CM3)
Wet Expansion	≤0.23%
Water Absorption	≤25%
Incombustibility	Incombustible Class A1
Water Penetration	Back side without water drop after 24 hours
Flexural Strength	Air dried condition: ≥18;Saturated Condition: ≥14
Radioactivity	Decorative materials Class A
Frost Resistance	No layers and cracks after 25 cycles under freezing and thawing
Asbestos	100% free of asbestos
Certification	ISO, CE,SGS
Packaging	Standard wooden pallet
Trade Terms	FOB Shanghai/Ningbo,CFR,CIF,EXW
Payment Terms	T/T, Irrevocable L/C at sight
Delivery Time	Within 15-20 days if stock not available
Main Characteristic	Environmental friendly materials
	Excellent Strength and toughness
	Waterproofing and fireproofing
	Antisepsis and moth-proofing
	Good acoustic insulation and weather resistance
	Good thermal and heat insulation
	Durability and long lifetime
Application	Exterior decoration panel
	Intergrative façade panel for exterior wall thermal insulation
	Interior wall decoration panel
	Flooring for loft interlayer, container house, light steel villa
	For subway ,tunnel, baseboard, outdoor furniture
	Coating board
	Thinner lining board for stone

Loading Photos:

Our Services

1.Our board export all over the world.
2.Free samples
3.We have perfect workmanship and strict control of product
4.We offer high quality with reasonable price
5.Quick response to all your inquiry
6.Offer complete product line of items you could think of, It means one stop solution for your project.
7.Be a manufacturer, we could provide you competitive prices with strict quality control.
8.Besides OEM, we could handle ODM and work together to complete your project as we have

Contact Us :
Any question,pls feel free to contact us.We will reply you within 24H.
Contact percon:Susan Wei (Sales Manager)
Mobil:086-15001321220
Email:info@hocre-board.com

Fiber cement flat cladding board

These are boards with superior features which can be used in all kinds of facade cladding applications of buildings. They are named as fiber cement boards as a global definition. HOCREBOARD smooth boards are produced of mixture totally natural materials and they are environment, ecology and human-friendly. Fiber cement boards can be processed and assembled easily with the proper tools according to the surface details they will be used on.

Size:1220x2440x6-25mm

Color:Customerized

More information, please send email to info@hocre-board.com

high quality wood grain calcium silicate board for flooring

Specification	Size	2440*1220mm;
	Thickness	4 to 25mm
	Surface treatment	With or without sanded surface; bevelled
	Custom Specifications available on request	edges available
Outstanding characteristics	Environmental friendly, 100% asbestos-free or 3%containing, outstanding fire  resistance, high tensile and bending strength, remarkable moisture resistance,  stable dimension, durable, excellent heat insulation and soundproofing, easy  Installation
Main usage	Partitioning wall, ceiling tile
Other usage	Protecting wall system, movable floor, countertop, panel
	billboard, kitchen and bathroom wall,
	pipeline insulation
Physical property	Raw material	Tobermorite, cement, Quartz sand,  fiber
	Density	1.2-1.4 g/cm3
	Flexural strength	>13 Mpa; real test >15 Mpa (GB/T7019-1997)
	Moisture content	<10%
	Fire rating test	Class A incombustible material (GB8624)
	Soundproofing	45-55 dB (GBJ75-84)
	Thermal conductivity	≤0.3W/MK (JC/T564)
	Radiation	Accordance with standard (GB6566-2001)
	Incombustibility	4 h
	Moisture movement	≤0.25% (GB/T7019-1997)
	Dry shrinking rate	<0.09%(GB/T7019-1997)
Application	Commercial, industrial, and apartment buildings

Main Usage:

1)partitioning wall

2)internal and external wall bodies

3)ceiling

4)flooring

it is suitable for places such as meeting room ,

hotel,factory building ,theater ,hall ,bathroom and so on

Package

1.Hold by Wooden Pallet

2.Covered by PVC and Bonded with plastic belt

3.Fasten around the corners

4.Mounted in container to protect your purchasing.

Trade Term

1. Payment: T/T,LC

2 .Lead time: Samples:7-15 Working days;

3. Shipping freight are quoted under your requests.

4. Discounts: discount based on the order quantity.
